SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-Wired (AC 120V)
Product details
| Management number | 233915569 | Release Date | 2026/06/27 | List Price | $7.20 | Model Number | 233915569 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Input control signal version: AC/DC 12V, AC/DC 24V, AC 120V, AC208-277V four versions selectable. 2, Output switch SPDT (Single Pole Double Throw), rated current 10A / 277VAC or 10A / 28VDC. 3, Packing list: 1x relay module, 1x NPT 1/2” Zinc alloy conduit locknut, 2x M3x50mm screws. 4, Polycarbonate plastic enclosure with a NPT 1/2” mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick. 5, This is a simple and practical passive relay module, which is very convenient to use. All wires lead out via 1/2” mounting nipple, it can be flexible mounting with your junction box / outlet box. Two screw mounting holes are convenient for you to fix it on the wall or wooden board.
- Input control signal version: AC/DC 12V, AC/DC 24V, AC 120V, AC208-277V four versions selectable.
- Output switch SPDT (Single Pole Double Throw), rated current 10A / 277VAC or 10A / 28VDC.

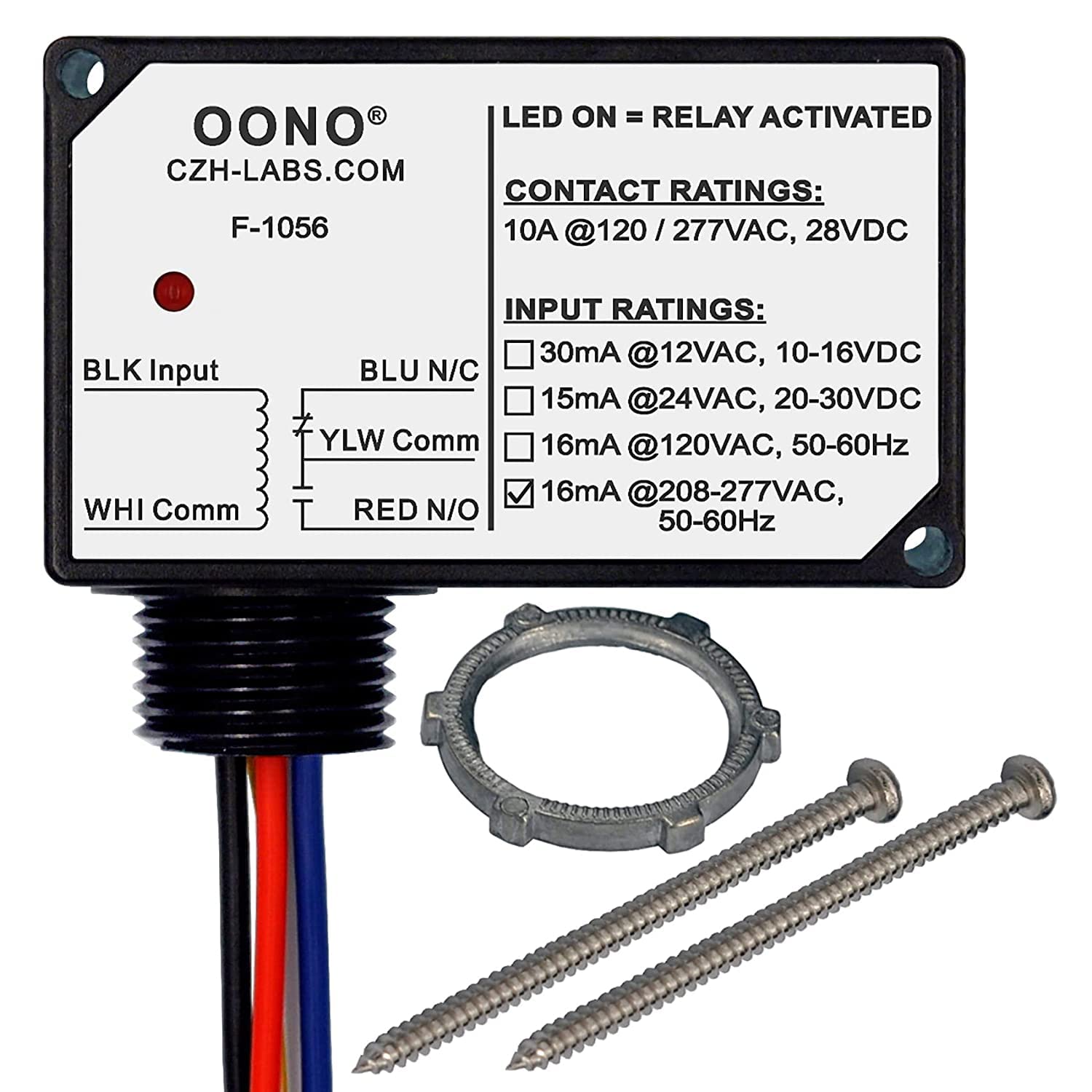

- Packing list: 1x relay module, 1x NPT 1/2” Zinc alloy conduit locknut, 2x M3x50mm screws.
- Polycarbonate plastic enclosure with a NPT 1/2” mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick.
- This is a simple and practical passive relay module, which is very convenient to use. All wires lead out via 1/2” mounting nipple, it can be flexible mounting with your junction box / outlet box. Two screw mounting holes are convenient for you to fix it on the wall or wooden board.
| ASIN | B0BBRBR1KT |
|---|---|
| Model | F-1056 Series |
| Wattage | 1200 watts |
| Brand Name | OONO |
| Part Number | F-1056 Series |
| Coil Voltage | 120 Volts |
| Contact Type | Spdt |
| Manufacturer | CZH-LABS |
| Mounting Type | Screw Mount |
| Connector Type | Wired |
| Current Rating | 10 Amps |
| Operation Mode | Automatic |
| Contact Material | Copper Alloy |
| Number of Terminals | 2 |
| Contact Current Rating | 10 Amps |
| Maximum Switching Current | 10 Amps |
| Maximum Switching Voltage | 120 Volts |
| Minimum Switching Voltage | 120 Volts |
